Importing Moasure Files into EZD Max

To import drawings from Moasure directly into EZD Max, follow these steps.

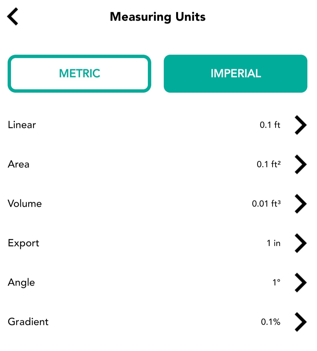

1. Check that your Export units in Moasure are set to 1 in.

2. Export your Moasure file as a DWG, this is one of the Export to CAD options
3. Save your .dwg file locally on the computer you are using EZD Max on.

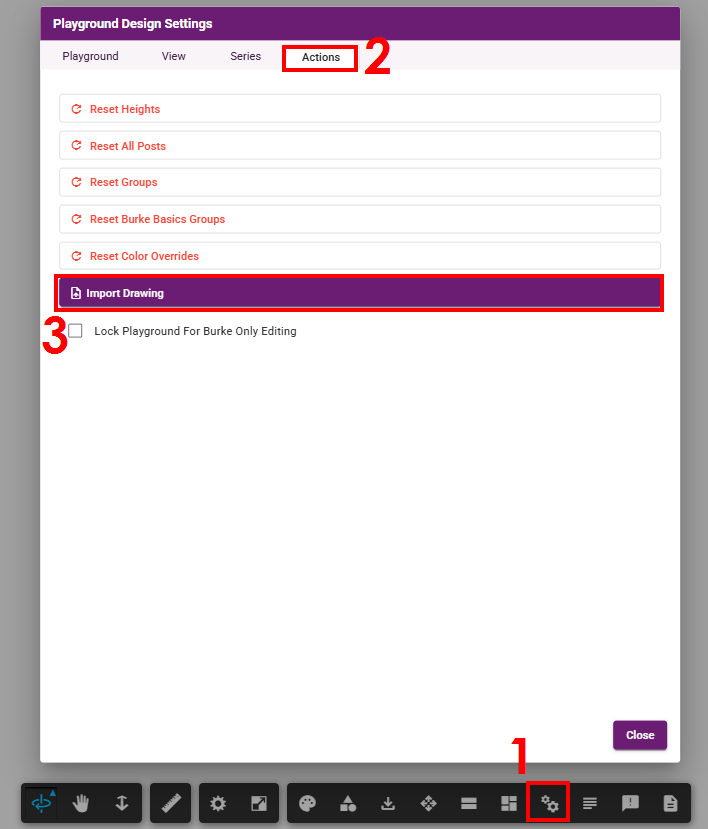

4. In EZD Max navigate to Design Settings > Actions > Import Drawing. This will open a file explorer to select your .dwg file. EZD will take a moment (usually less than 30 seconds) to load the site.
5. Verification that the scale is correct can be done using EZD's measure tool to check a known distance on the site drawing.
   *The measure tool is in inches.
