Auto-populated Components

One of the powerful features of EZ Design Max is to automatically insert components that are dependent on the presence of other components.  Upright posts and platform transitions/barriers were automatically configured in the old EZ Design application, but EZ Design Max greatly expands on the use of this feature.  Jump to list of auto-populated components.

In general, components that are automatically populated can be changed to other allowable options through the 'Edit Component' window.

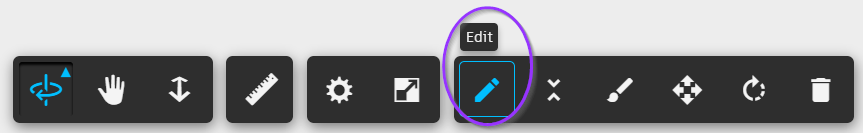

Select the auto-populated component, then click the 'Edit Component' button.

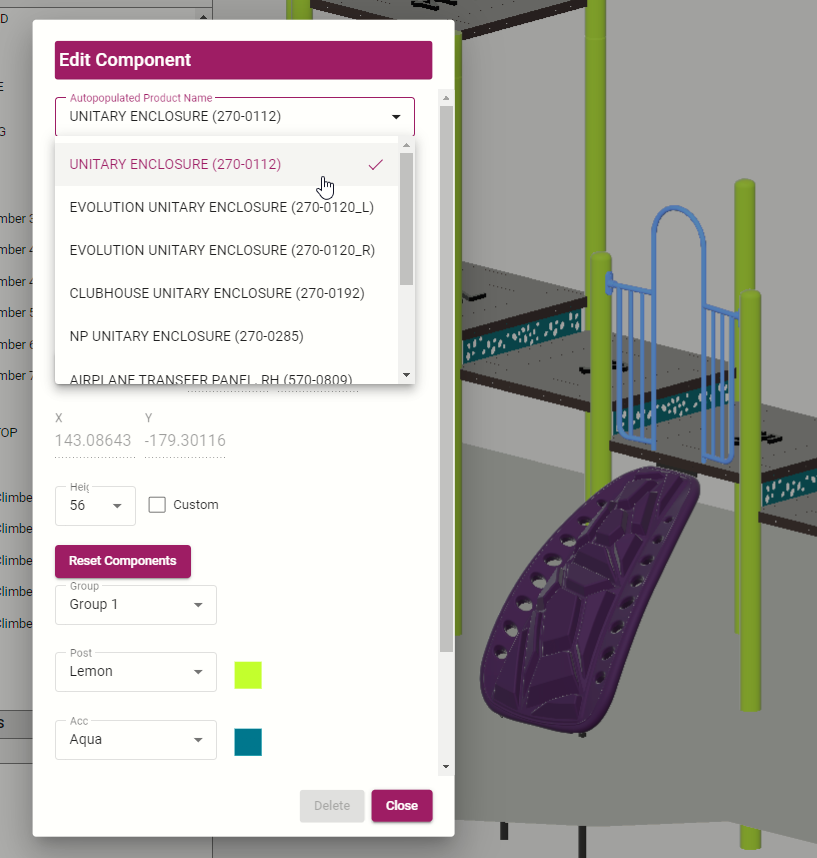

In the 'Edit Component' window, use the drop-down field "Auto-populated Product Name" to select the desired option:

The available options will be listed in order by their component number.  The lowest component number will usually be the default option.

Complete List of Auto-populated Components

Broad Categories

• Upright Posts
• Platform-to-platform Transitions and Barriers (Closure Plates)
• Climber Enclosures (Except Synergy Imagination)
• Single Slide Hoods/Sit-down Bars
• End Rungs
• Launch Pads
• Swing Seats
• Hill Slide Supports

Specific Components by Parent Component

• 046-0153 Border Ramp w/ Stakes will populate 046-0054 Plugs on all sides that are not attached to 6 ft or 4ft borders.
• 560-2623 Dome3 will populate 3 play activity inserts from 8 options:
  • 560-2639, 560-2640, 560-2641, 560-2642, 560-2643, 560-2672, 560-2683, 560-2684.
• 560-2587 RopeVenture Revolv - 3 support climbers:
  • 560-2695, 560-2596, 560-2597, 560-2598, 560-2599, 560-2600
• 590-0161 GAGA ADA Entrance or 590-0165 GAGA Entrance Panel will populate the remaining panels to make a complete GAGA Pit:
  • 590-0163, 590-0162, 590-0164, 590-0165, 590-0161
• 560-1701, 560-1702, 560-1703, and 560-1704 STEMPlay Activity Frames will populate 2 STEM Inserts, specific to the size of the insert:
  • 560-2685, 560-2686, 560-2688, 560-2689, 560-2690, 560-2691, 560-2692
• 570-0771 Tri-Rider will populate 3 themed riders:
  • 570-0802, 570-0826, 570-0827, 570-0828, 570-0829, 570-0830, 570-0831, 570-0832, 570-0833, 570-0834
• 370-0829 Plexus Overhead will populate 4 Climbers:
  • 370-0830, 370-0831, 370-0832, 370-0833
  • To attach the 370-0829 to a post, use 370-0834 Overhead Post Attachment bracket
  • To attach any of the 4 climbers to a post, use the 370-0837 Climber Post Attachment bracket
• 390-0264 Synergy Plexus Overhead will populate 4 Climbers:
  • 390-0265, 390-0266, 390-0267, 390-0268
  • To attach the 390-0264 to a post, use 390-0113 Overhead Post Attachment bracket
  • To attach any of the 4 climbers to a post, use the 390-0269 Climber Post Attachment bracket
• 570-0398 Steering Wheel Assembly
  • No Suffix version populates a 570-0394 Pipe Wall
  • '_BA' version populates a 270-0148 Balcony
• 570-0516 Telescope Assembly
  • No Suffix version populates a 570-0394 Pipe Wall
  • '_BA' version populates a 270-0148 Balcony
• 470-0381 Nature Play Tree Trunk populates a hex roof:
  • 470-0518 Shaker Hex Roof or 470-0632 Clubhouse Hex Roof
• Accessible Reach Panels when On Platform:
  • 570-2558, 570-2667, 570-2668, 570-2669, 570-2670 will populate a 570-0622 Platform Roll Guard
  • 570-2620, 570-2621, 570-2672, 570-2673, 570-2674, 570-2675 will populate a 270-0148 Balcony
• 270-0290 Half Platform and 270-0291 Half Platform w/Support
  • Populate 2 half barriers: 570-2624 or 570-2625
• Sensory Rail Ramps 270-0124 and 270-0125
  • Populate 6 inserts: 570-0104, 570-0105, 570-0106, 570-0107, 570-0108, 570-0109, 570-0110, 570-0111, 570-0112, 570-0113, 570-0114, 570-0115, 570-0116, 570-0117, 570-0118, 570-0119, 570-0120, 570-0121, 570-0122, 570-0123, 570-0124, 570-0125, 570-0126, 570-0127, 570-0128, 570-0129
• Ship Masts (Coming Soon)
• Timber Tower Platforms 270-0282, 270-0283, 270-0284
  • Populate a 470-0639 Clubhouse Retreat Roof
• 370-0170 Trango to Large Boulder Climber populates a 560-0430 Nature Play Large Boulder
• Evolution Roofs - 470-0813 Hex Roof, 470-0867 Square Roof, 470-0807 Square Roof Add-on
  • Depending on Height and presence of other components, all barriers and brackets will populate: 470-0808, 470-0811, 470-0809, 470-0810, 570-2714, 570-1545, 570-1544, 570-1546, 570-1557, 570-1558
• 370-1663 RopeVenture Tunnel will populate barrier panels or 370-1698 Curved Crossbar depending on height
• Transfer Stations 370-1657, 370-1658, 370-1659, 370-1660, 370-1661, 370-1662, 390-0147, 390-0148, 390-0149, 390-0150, 390-0151, 390-0152
  • Populate (3) 580-1364 Lil Novo Bean Step; at least one must be removed (set to Null) to create a transfer point.
• 24" dia tunnels: populate hole panels on each end
• Rockit Wall Climbers 560-0540, 560-0541, 560-0542, 560-0543
  • Populate U-posts and Attachment Posts (incomplete)

Components with Variations

Several components have different variations (same component number, but different height/angle). These variation can be selected in the 'Edit Component' window, to easily switch from one variation to another:

• 550-0206 ZipVenture - available in various lengths
• Sound Garden panels - different upright posts
  • 580-0232, 580-0299, 580-0300, 580-0303, 580-0334, 580-0305, 580-0304, 580-0325
• All Trango Climbers:
  • 370-0169, 370-0170, 370-0171, 370-0197, 370-1651, 370-1654, 370-1655, 390-0227, 390-0270, 390-0272
