Downloading AutoCAD (.dwg) file

Modified on Thu, 4 Jan, 2024 at 3:23 PM

Downloading the correct file for 2D CADs has caused some confusion.

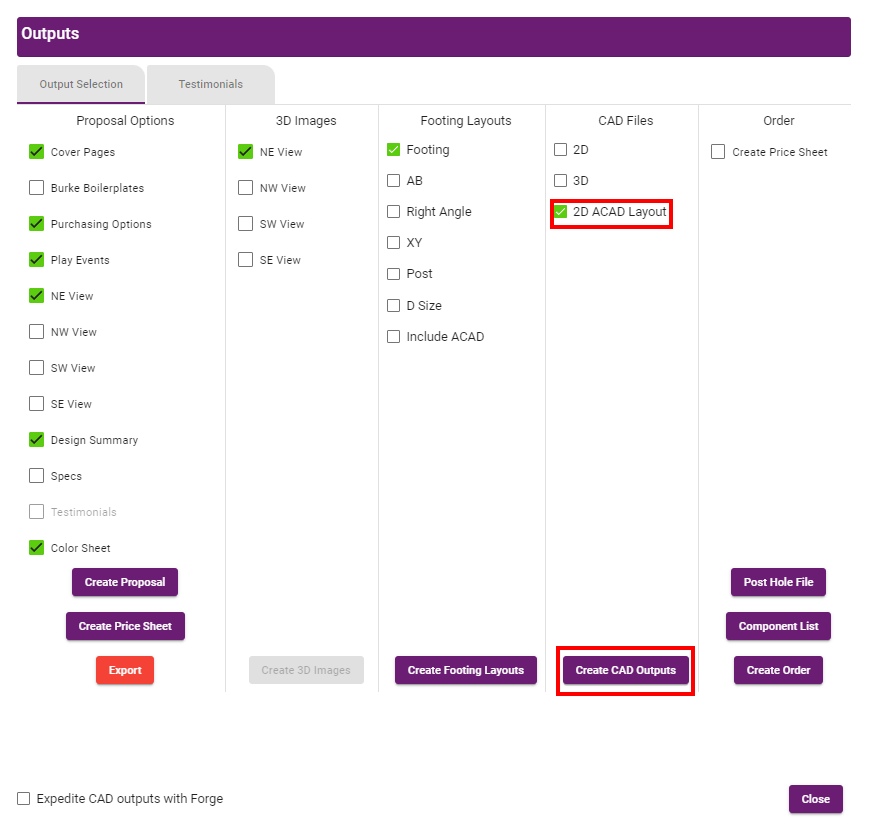

On the outputs tab choose "2D ACAD Layout" and then click "Create CAD Outputs"


After the files are finished being generated it will show as three .zip folders. The middle folder ending with "_ drawings.zip" is the one with the CAD file you will be looking for. The CAD file should then end with "ACADLayout" this will be a 2D top down line drawing of the equipment, use zones, & site.

Unfortunately right now proposal documents make these same three .zip folders and if a proposal is ran after the CAD file is ran it will overwrite the CAD file that is out there. Either download the CAD before the proposal is done, or make the CAD second for now.
