Importing Existing Design

Importing a Catalog Structure

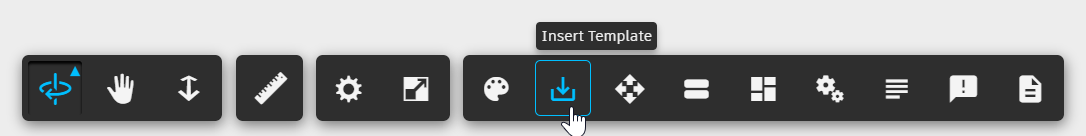

Catalog Structures or other Existing Designs can be copied to the current design by clicking the "Insert Template" button:

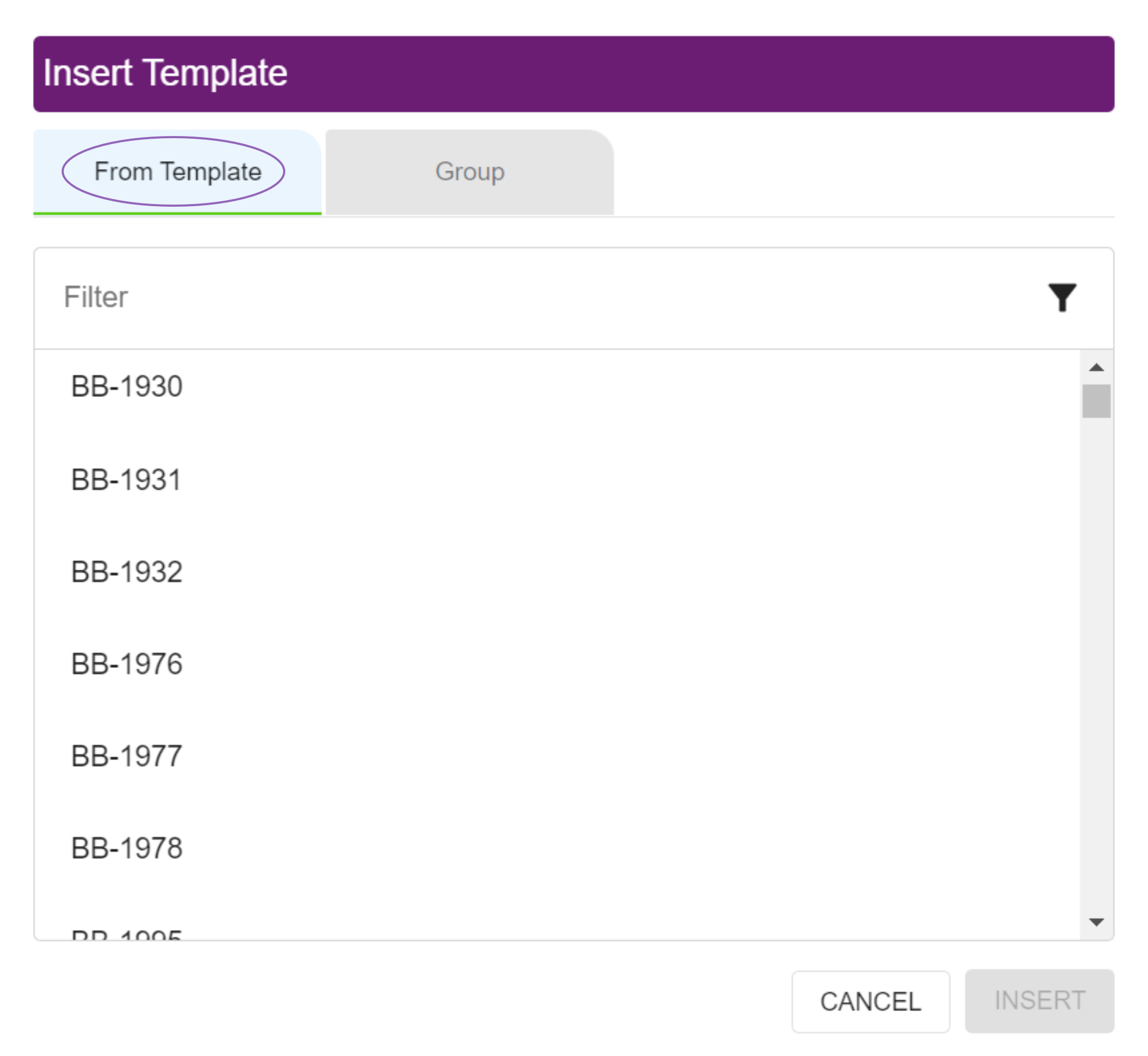

 For Catalog Designs, use the "From Template" tab.

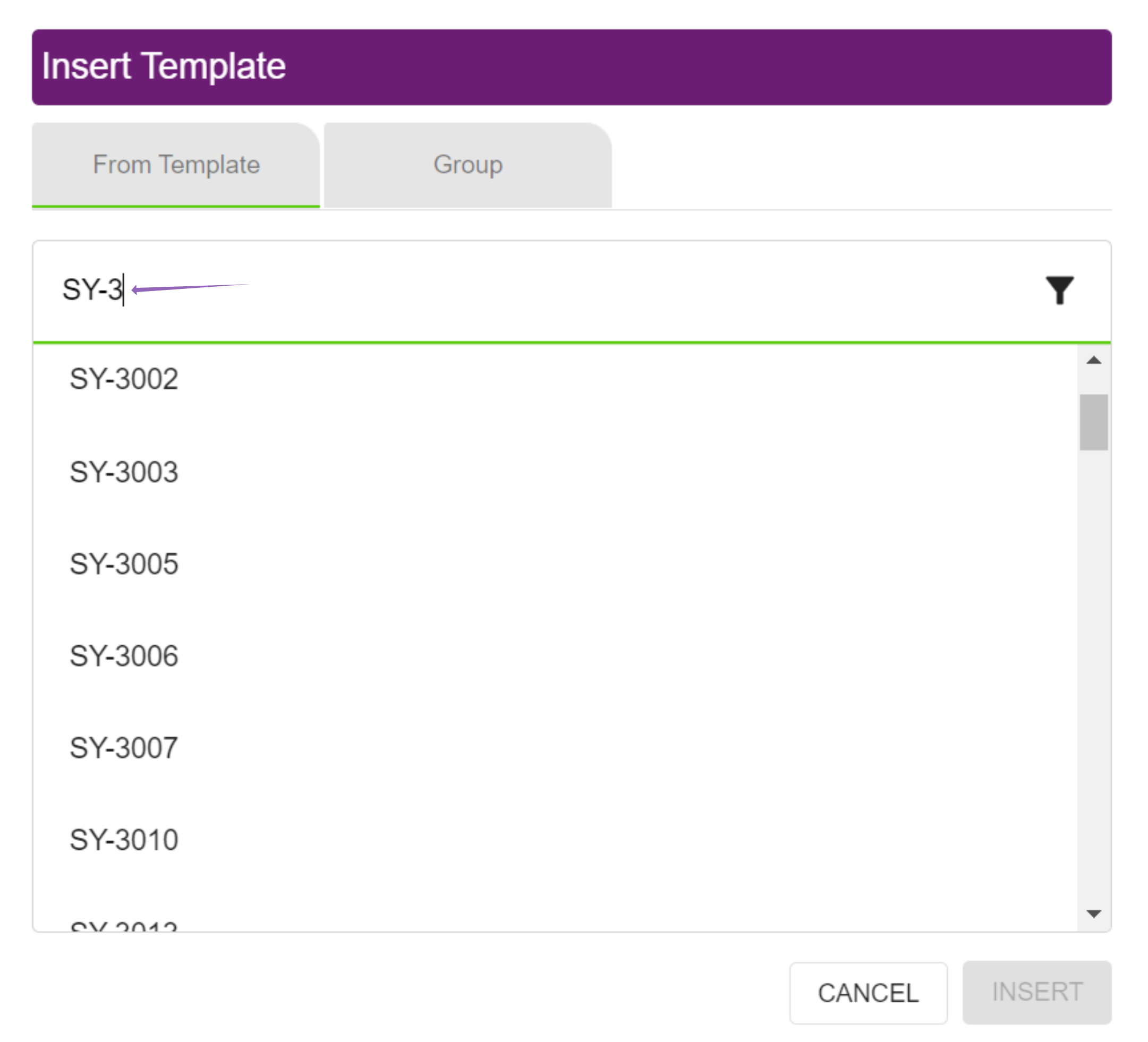

In the "Filter" field, start typing the structure number you are looking for.  If it's available as a template design, it will appear in the list below.

Importing an Existing Structure from a Different Proposal/Project

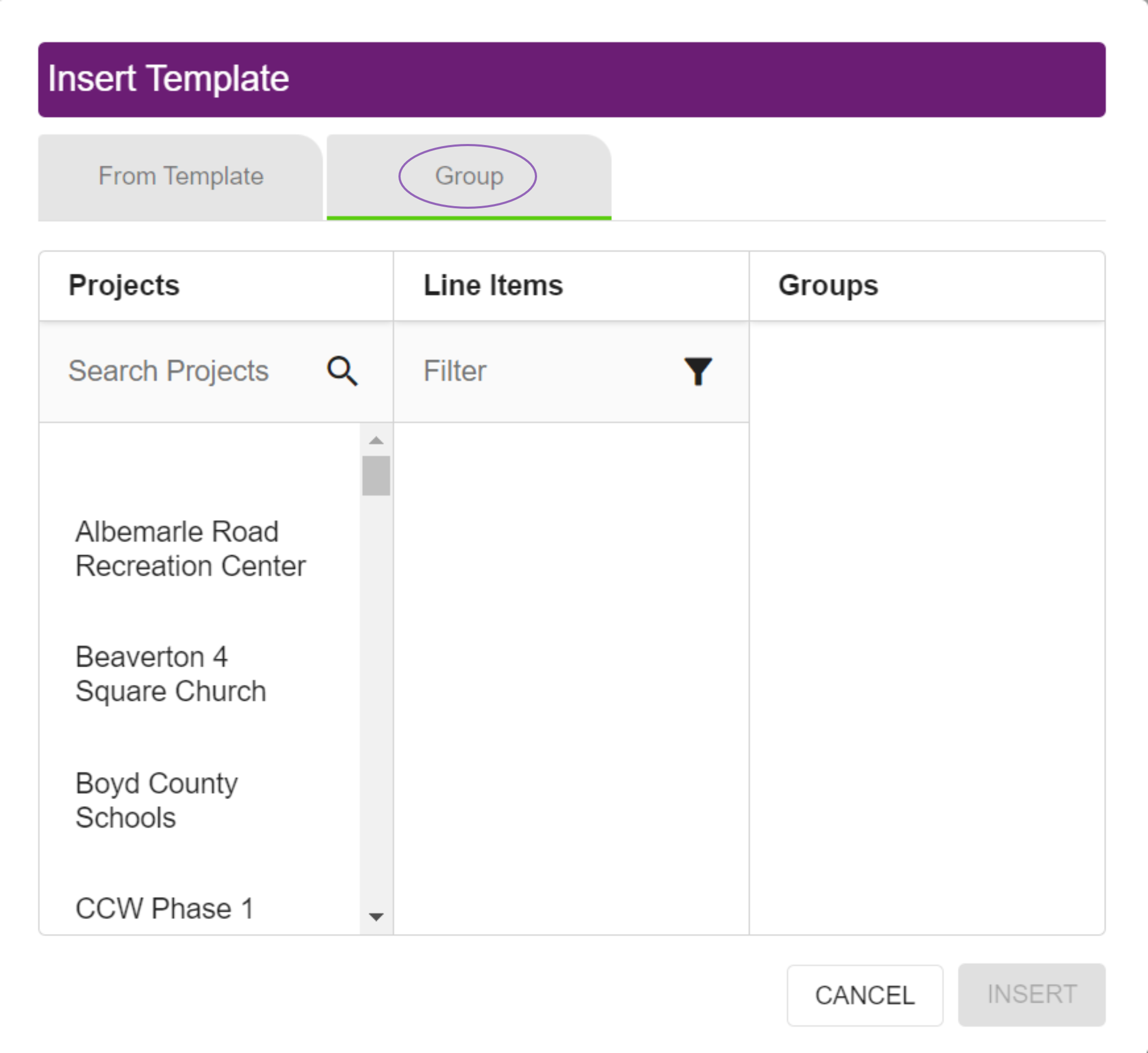

For non-Catalog existing designs, use the "Group" tab.  You will need to know the name of the project or the project number for the existing design.

Find the Existing design by typing the project name or number in the "Search Projects" field.  This will filter the project list to select from in the "Project" drop-down list.  Select the correct Project, then select the correct Group(s) that you want to import into the current design.

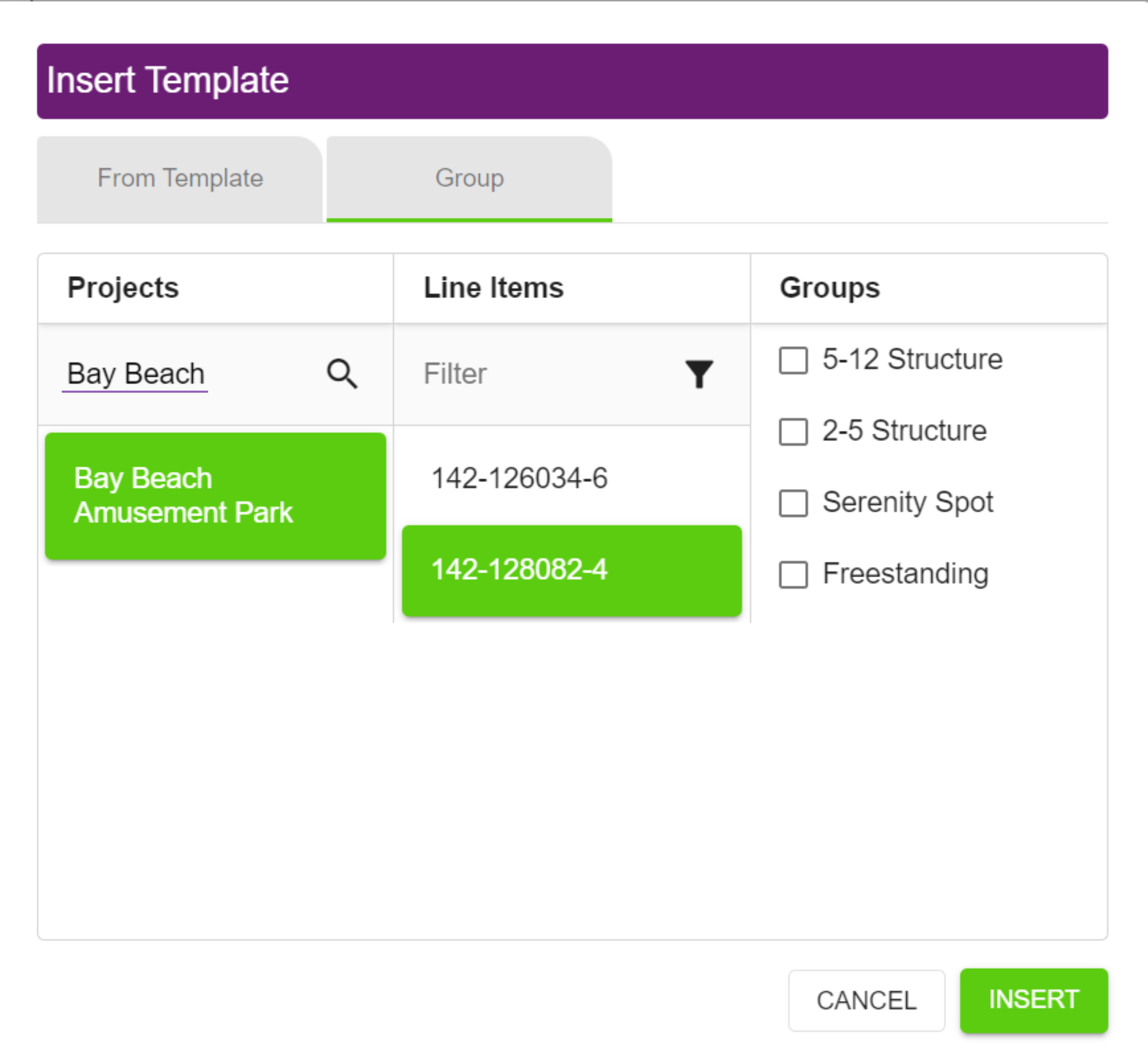

(Above: Searching project by name.)

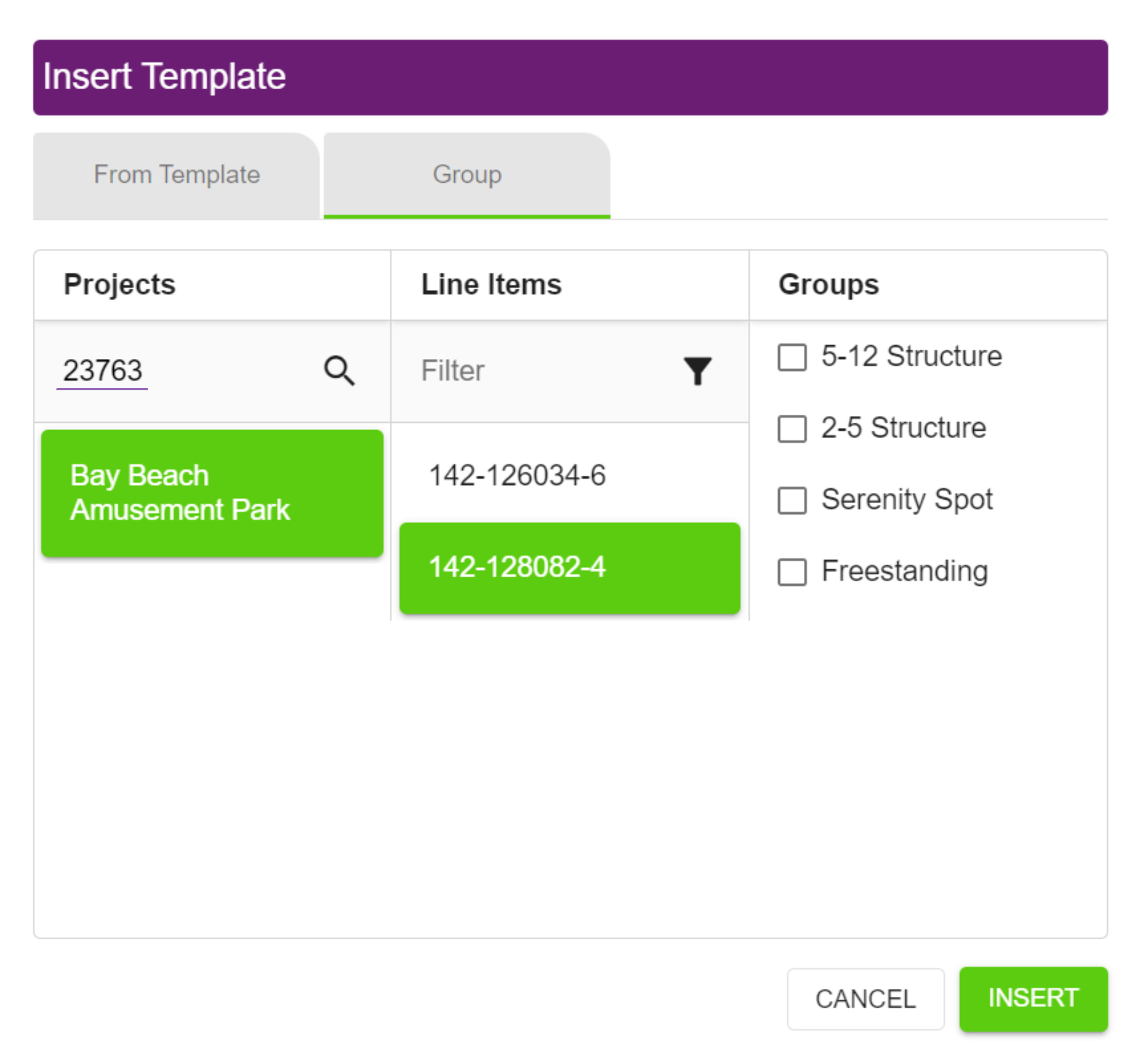

(Above: Searching project by Project Number.)
